ELECTRIC CIRCUITS

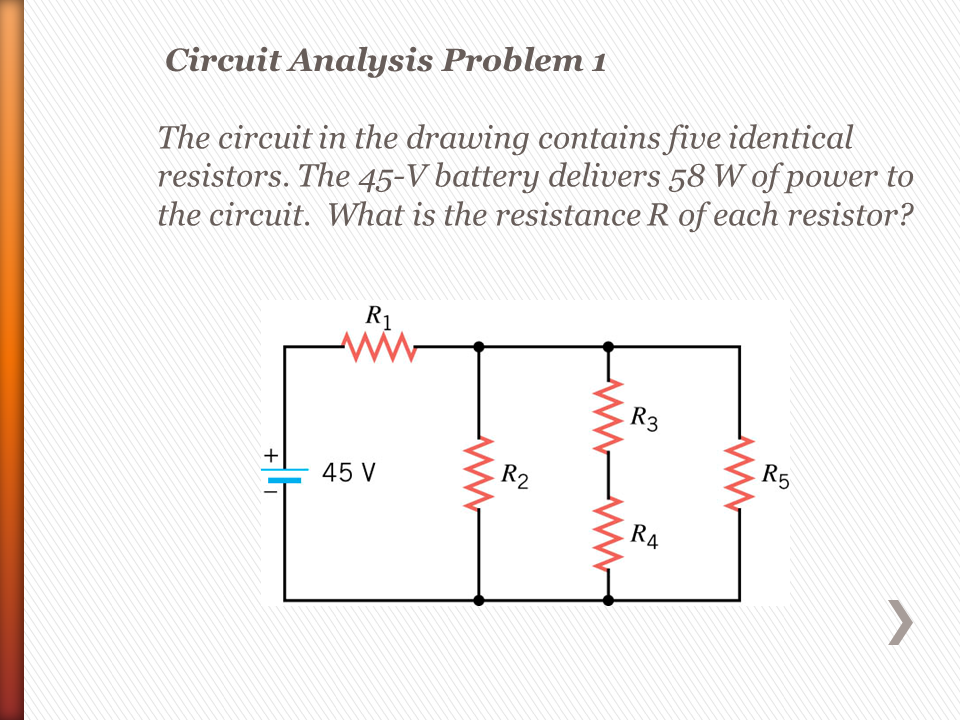

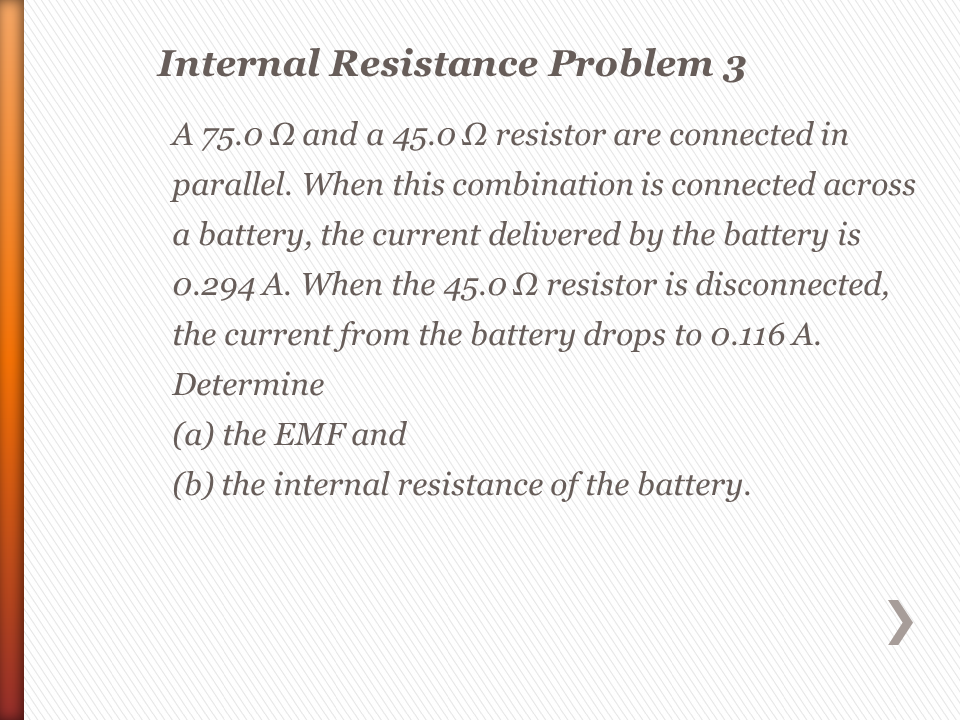

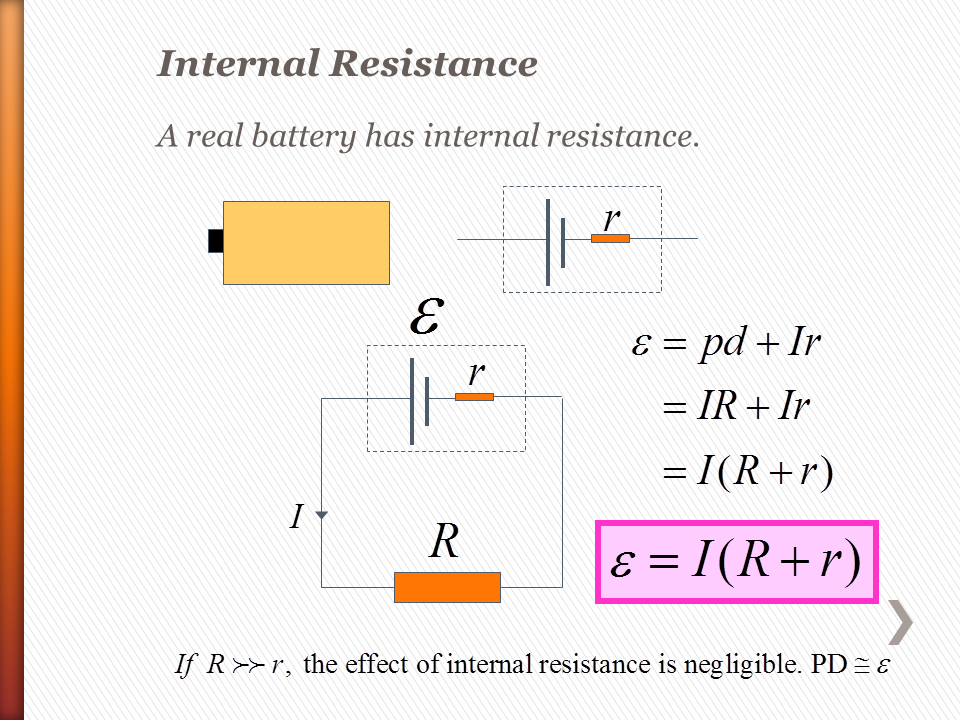

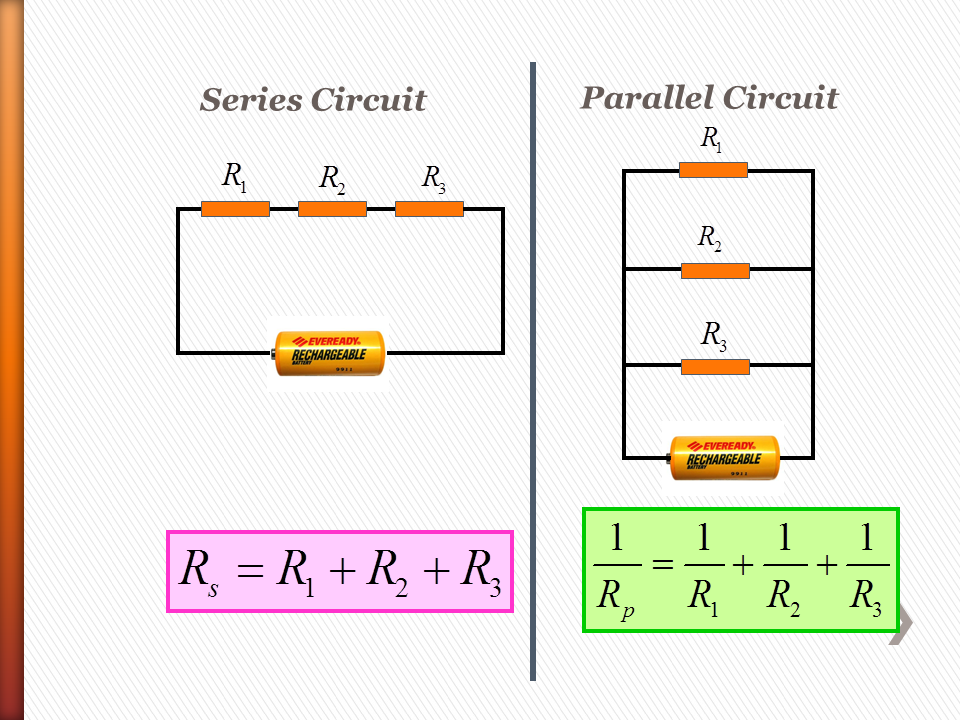

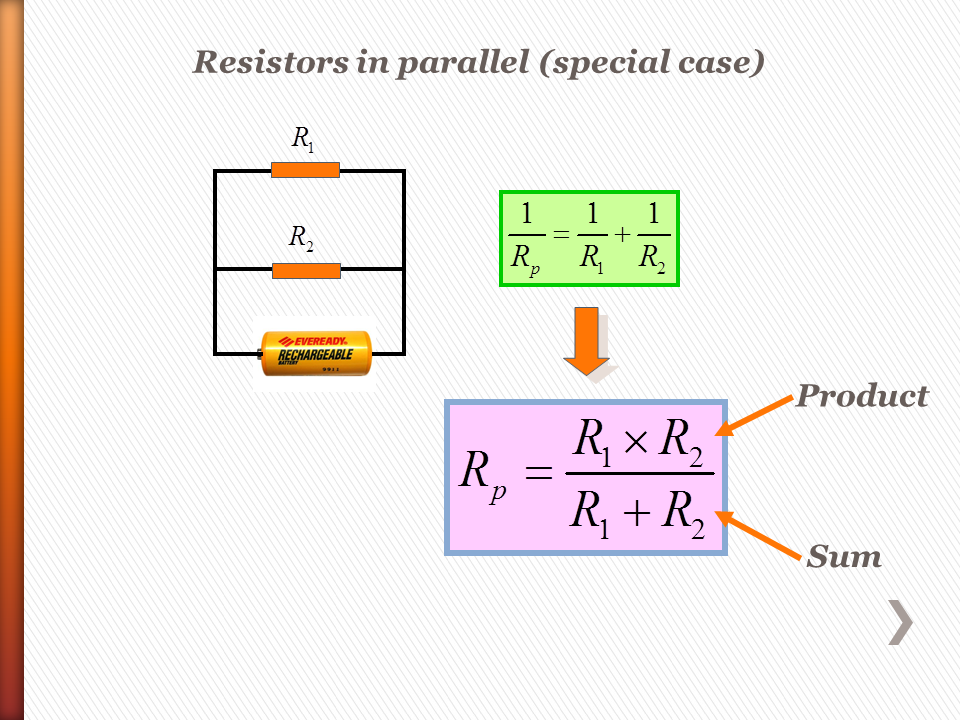

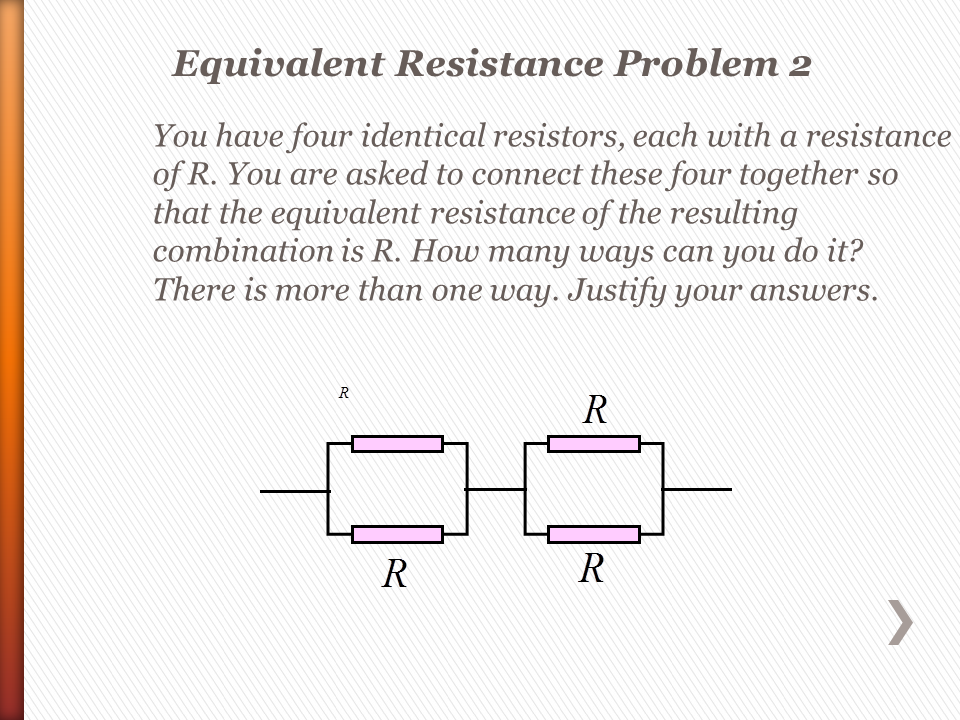

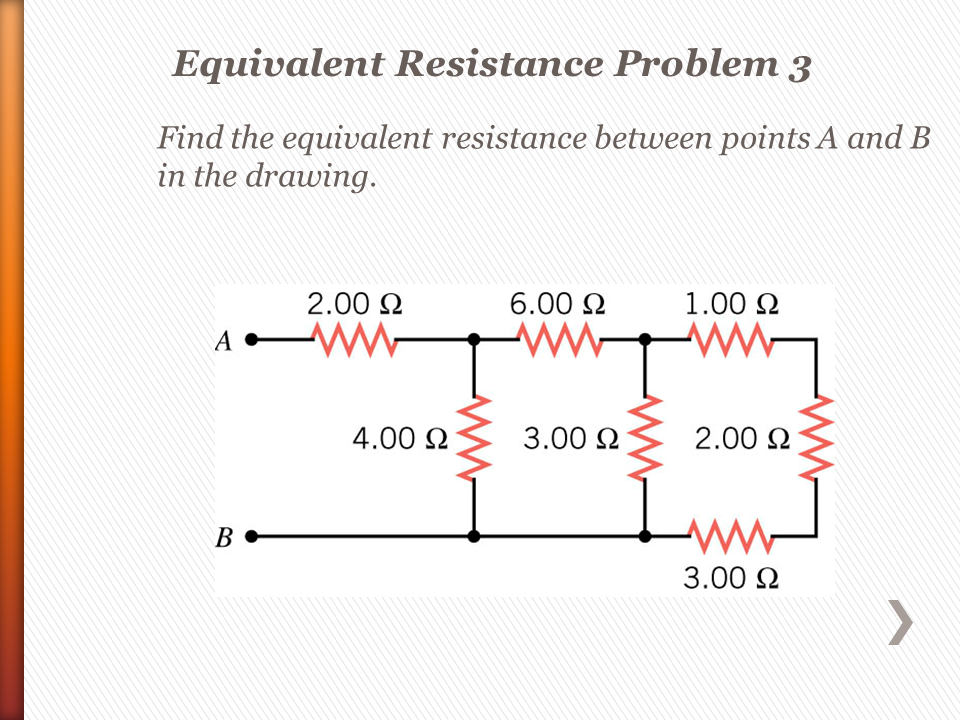

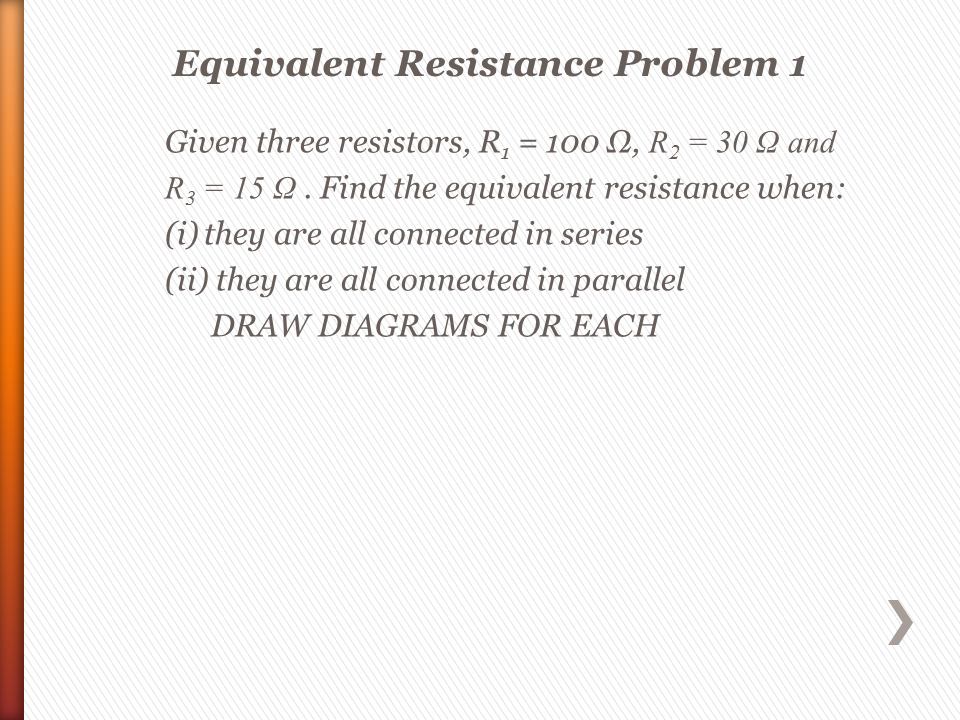

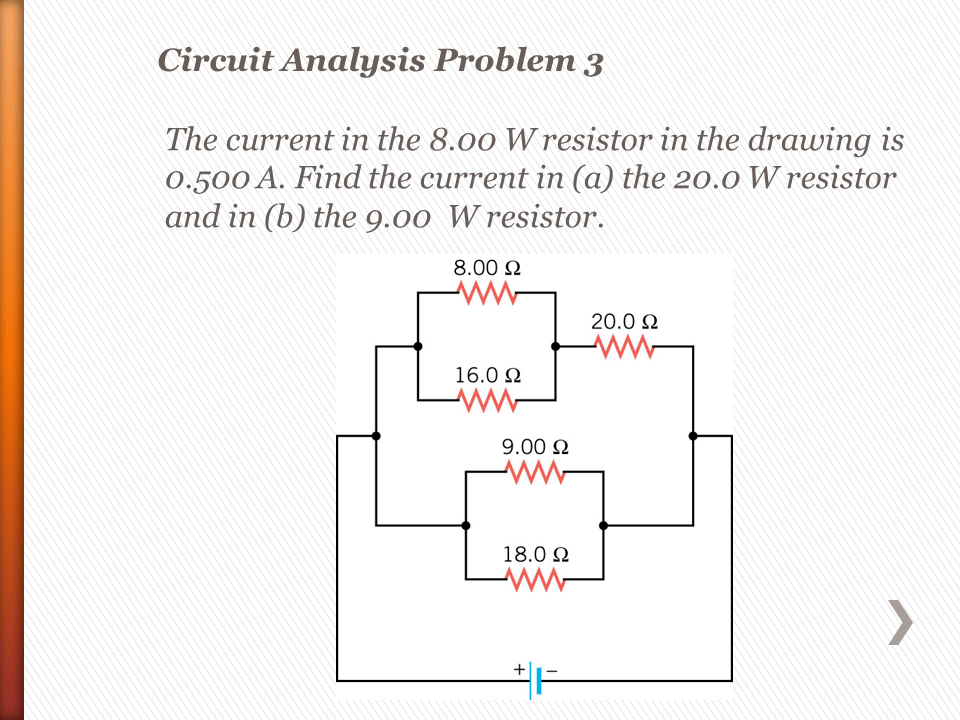

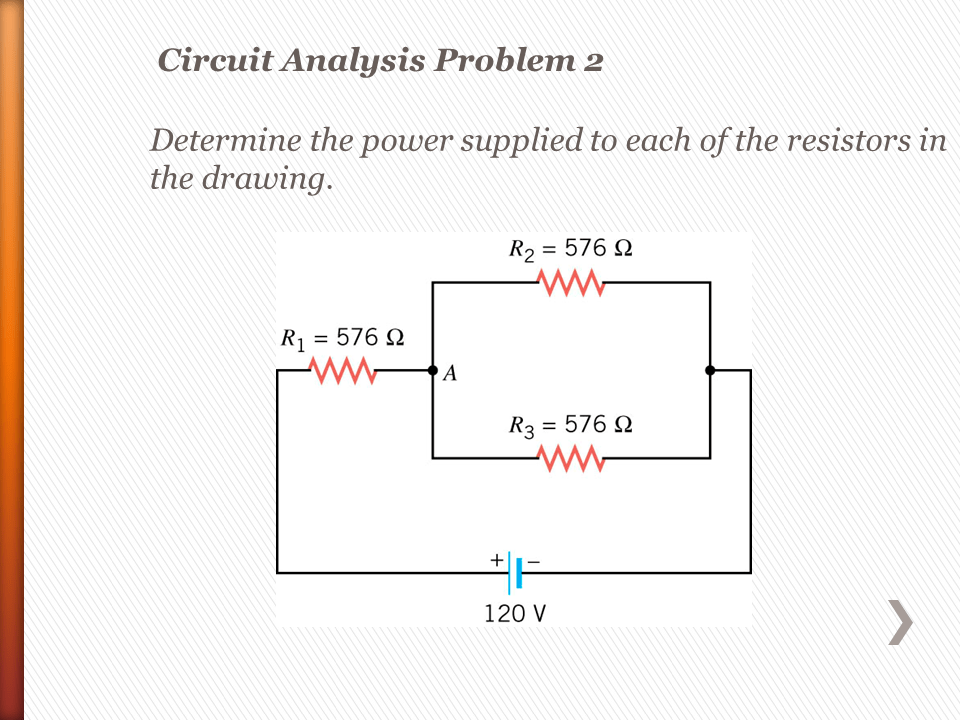

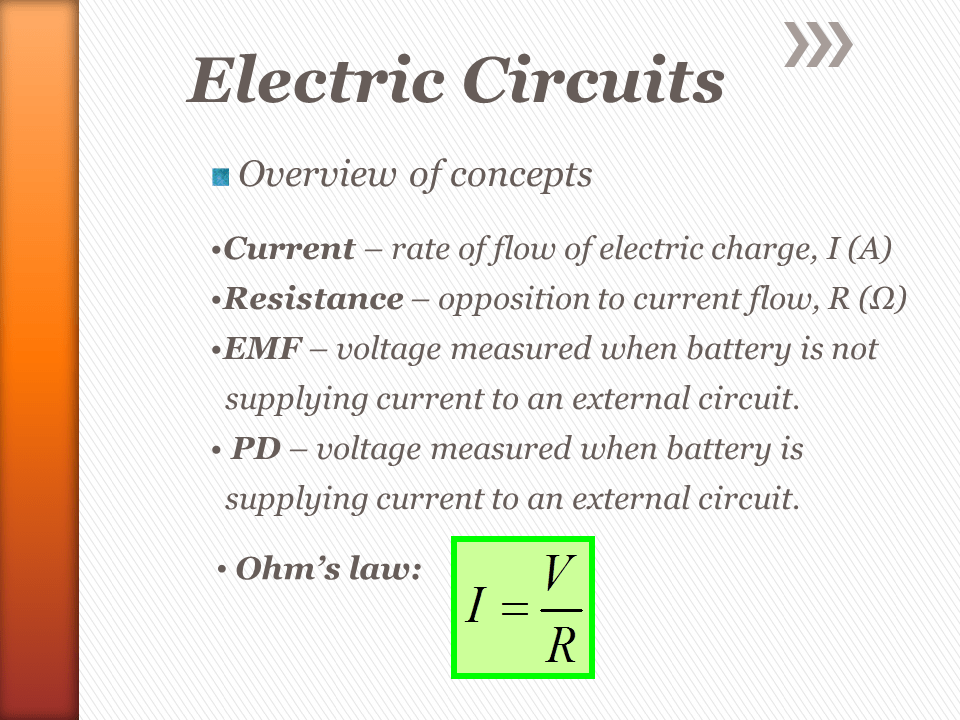

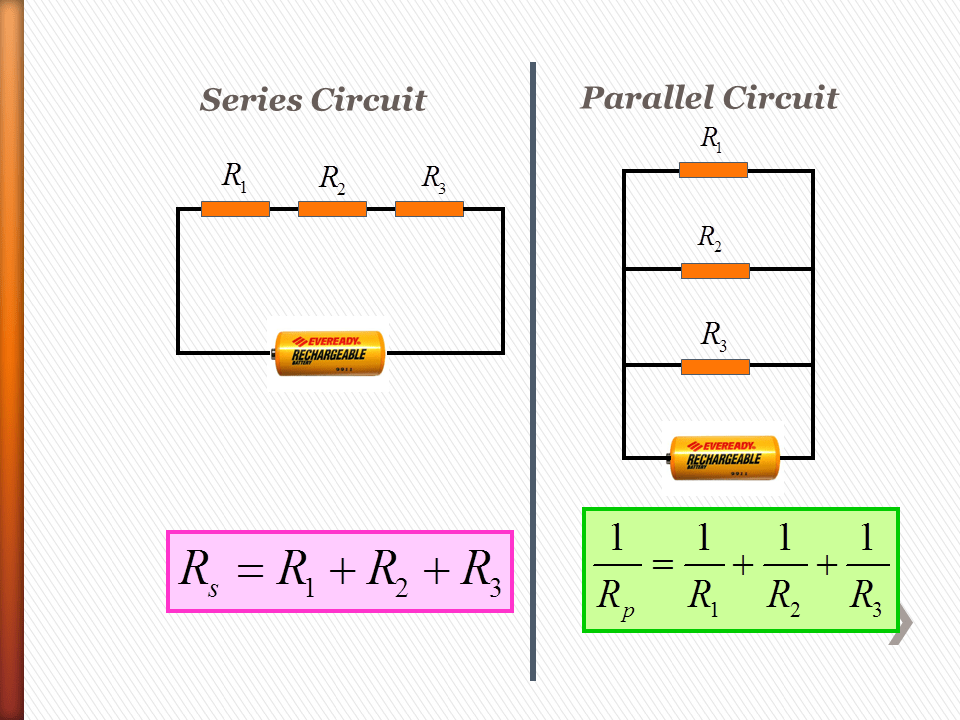

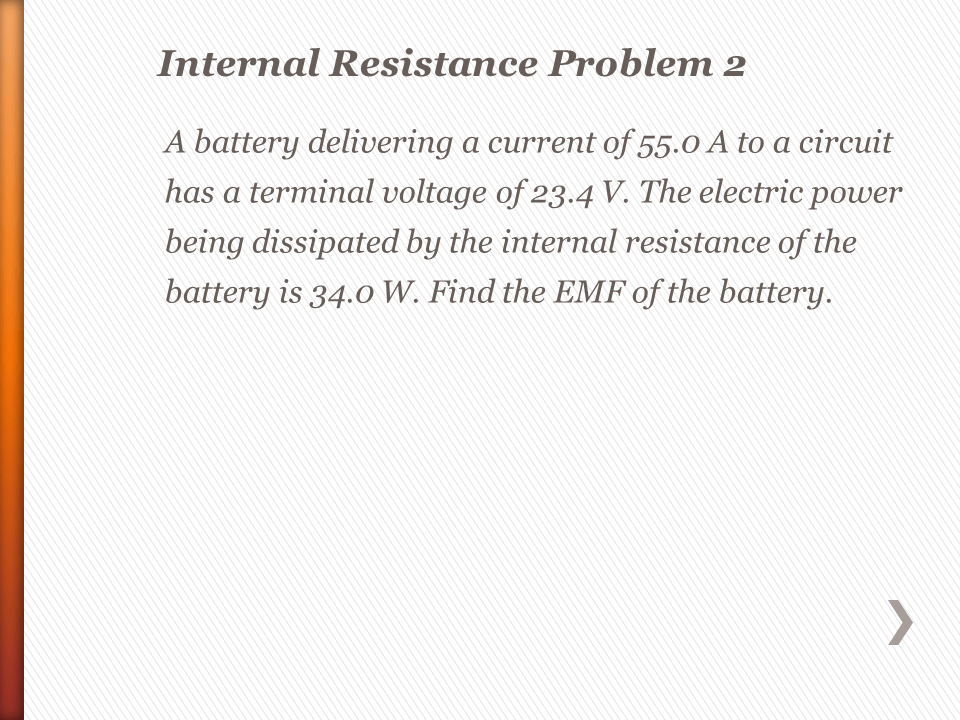

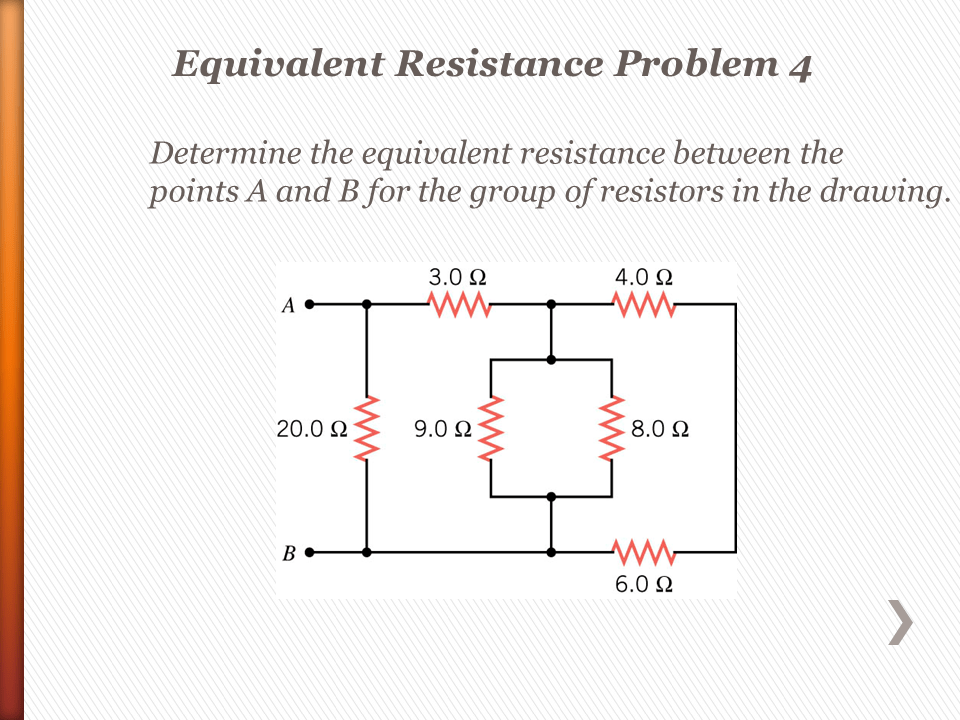

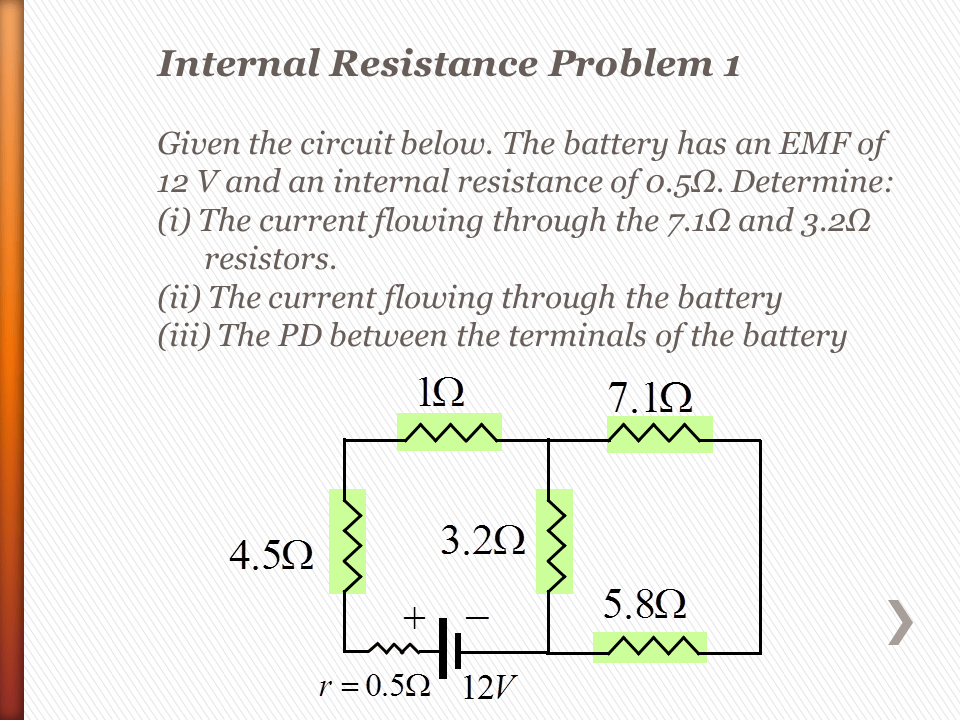

Slide1 Slide2 Slide3 Slide4 Slide5 Slide6 Slide7 Slide8 Slide9 Slide10 Slide11 Slide12 Slide13 Slide14
